Product Details:
Payment & Shipping Terms:
|
Model: | SGMAH-01AAA61 | Type: | AC Servo Motor |
---|---|---|---|
Brand: | Yaskawa | Warranty: | 1 Year |
Current: | 0.91 A | Voltage: | 200 V |
Rotated Speed: | 3000 Rpm | Power: | 100 W |

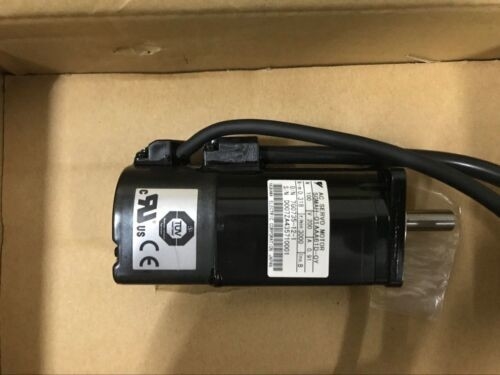

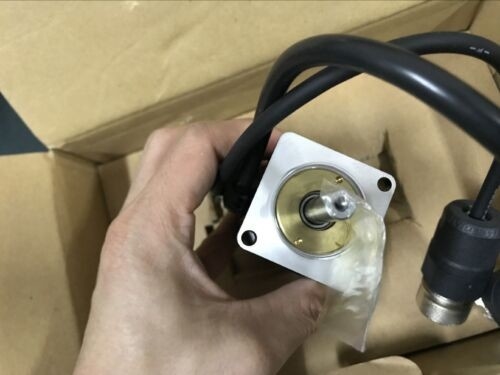

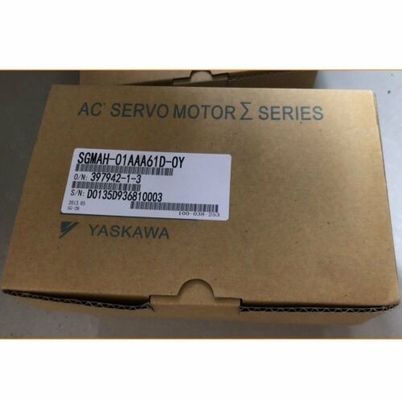

Yaskawa SGMAH-01AAA61 AC SERVO MOTOR 100W 200V 0.91A 3000RPM NEW
Specifications Of SGMAH-01AAA61
Description | SGMAH-01AAA61 is a Motors-AC Servo produced by Yaskawa |
Servomotor Type | SGMAH Sigma II |
Rated Output | 100W (0.13HP) |
Power Supply | 200V |
Encoder Specifications | 13-bit (2048 x 4) Incremental Encoder; Standard |
Revision Level | Standard |
Shaft Specifications | Straight with key and tap |
Accessories | Standard; without brake |
Option | None |
Type | none |
Yaskawa SGMAH-01AAA61 Product information and technical parameters:
Brand: Yaskawa
Name: servo motor
Model: SGMAH-01AAA61
Servo motor type SGMAH (speed: 3000r/min).
Power: 0.1kw.
Power supply voltage: single phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft with screw key.
Optional parts: no brake oil seal.
Improve mechanical properties.
In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance
Equipped with DeviceNet communication function type servo unit (servo controlled power supply drive type)
Maximum applicable motor capacity: 6.0kw.
Power supply voltage: three phase AC200V.
Interface: instruction selection and installation (rotary type servo motor).
Matching (hardware): shelf installation type + paint Yaskawa SGMAH-01AAA61.
Matching (software): standard.
Matching (parameter): standard
Optional modules: DeviceNet module (servo control power supply driver).
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software Yaskawa SGMAH-01AAA61.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability Yaskawa SGMAH-01AAA61.
Because the upper controller and the servo unit are connected through the communication network, the connection is greatly saved.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function.Servo motor SGMGH type.
Rated speed: 1000r/min.
Power: 3.0kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: B.
Shaft end: straight shaft without key.
Optional parts: with DC24V brake.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain SGMAH-01AAA61.
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number tthan the original product reduced by 1/2 SGMAH-01AAA61.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed control
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
