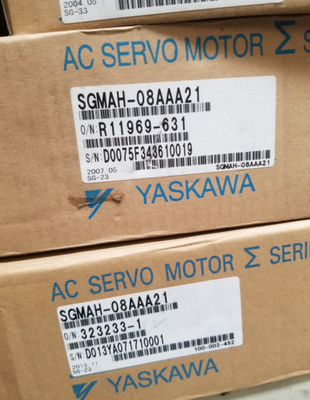

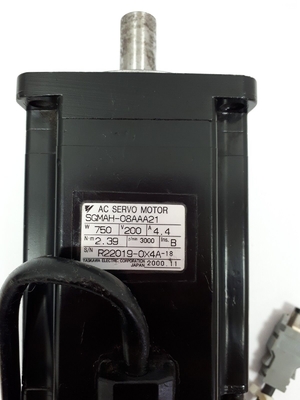

Yaskawa SGMAH-08AAA21 AC SERVO MOTOR 750W 200V 4.4A 3000RPM NEW

Large Image : Yaskawa SGMAH-08AAA21 AC SERVO MOTOR 750W 200V 4.4A 3000RPM NEW Get Best Price

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Certification:	CE
Model Number:	SGMAH-08AAA21

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD
Packaging Details:	orginal box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Model:	SGMAH-08AAA21	Type:	AC Servo Motor
Brand:	Yaskawa	Warranty:	1 Year
Current:	4.4 A	Voltage:	200 V
Rotated Speed:	3000 Rpm	Power:	750 W

Yaskawa SGMAH-08AAA21 AC SERVO MOTOR 750W 200V 4.4A 3000RPM NEW

Specifications Of SGMAH-08AAA21

Description	*SGMAH-08AAA21* is a Motors-AC Servo produced by Yaskawa
Servomotor Type	SGMAH Sigma II
Rated Output	750W (1.0HP)
Power Supply	200V
Encoder Specifications	13-bit (2048 x 4) Incremental Encoder; Standard
Revision Level	Standard
Shaft Specifications	Straight shaft without keyway
Accessories	Standard; without brake
Option	None
Type	none

Descriptions Of SGMAH-08AAA21

Yaskawa SGMAH-08AAA21 Product information and technical parameters:
Brand: Yaskawa
Name: servo motor
Model: SGMAH-08AAA21
Servo motor type SGMAH (speed: 3000r/min).
Power: 0.75kw.
Power supply voltage: three phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: no brake oil seal.
Improve mechanical properties.
In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,

Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Sigma -V series servo motor SGMAV.
Rated output: 1.0kw.

Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with hold brake (DC24V).
Super power rate.
Small capacity.
Ultra low inertia
Instantaneous maximum torque (rating 300%) Yaskawa SGMAH-08AAA21.

Equipped with a high resolution serial encoder (20 bit)
Max speed up to 6000r/min.
Variety is complete (50W ~ 1.0kw, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.

Vibration level: V15 Yaskawa SGMAH-08AAA21.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection Yaskawa SGMAH-08AAA21.

Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationLarge capacity SGMVV type servo motor.
Rated output: 45KW.
Voltage: three phase AC400V.
Serial encoder: 20 bit absolute value type.
Rated speed: 1500r/min.
The main mechanical structure: flange type, straight shaft (with keyway and screw).
Optional parts: with hold brake (DC90V).
The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.

The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r/min and 1500r/min products.
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenFull closed loop module.
Maximum applicable motor capacity: 3.0kw.
Power supply voltage: three phase AC200V.
Interface: MECHATROLINK- III communication command type (rotary servo motor).
Design sequence: A.
Hardware specification: base mounting type (standard).
Matching (software): no matching (standard).

Matching (parameters): no matching (standard).
Optional modules: full closed loop module SGMAH-08AAA21.
Full closed loop control system is used to control the rotating servo motor.
Please install the servo unit.
Using the position feedback signal which is output by the external encoder (linear grating ruler) installed onn the side of the machine to realize the high precision and high response SGMAH-08AAA21.
External encoder capable of corresponding high resolution (linear grating).

The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
