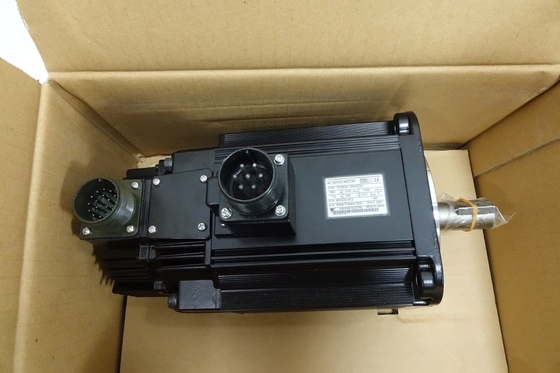

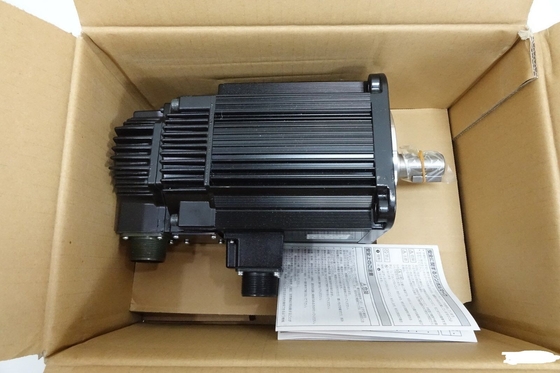

Yaskawa SGMGH-09ACA2C AC SERVO MOTOR 1.3KW 200V 10.7A 1500RPM NEW

Yaskawa SGMGH-09ACA21 Product information and technical parameters:
Brand: Yaskawa
Name: servo motor
Model: SGMGH-09ACA21
Servo motor SGMGH type.
Rated speed: 1500r/min.
Power: 0.85kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: no brake oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain.
Parameter setting device.

The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed control

Servo motor type SGMAH (speed: 3000r/min).
Power: 50W.
Power supply voltage: single phase AC100V.
Serial encoder: 16 bit absolute value.
Design sequence: A.
Shaft end: straight shaft with key.
Optional parts: with oil seal, DC90V brake.
Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response Yaskawa SGMGH-09ACA21
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the Yaskawa SGMGH-09ACA21.
Flexible use of online automatic adjustment function.High performance, use the best type of servo unit (purpose type).
Maximum applicable motor capacity: 1.0kw.
Power supply voltage: three phase AC200V.
Interface: MECHATROLINK-III communication command type (linear servo motor).
Design sequence: A.
Hardware specification: base mounting type (standard) Yaskawa SGMGH-09ACA21.
Function: fixed point through output function.

Use the best type of sigma -V-FT series
According to different uses, there are 5 equipped with a convenient function of the servo unit models.
FT001 (vibration suppression function to upgrade specifications): by strengthening the vibration suppression function, shorten the positioning time.
FT003 (pressure feedback function): high precision pressure control, to promote the high performance of the device.
FT005 (support for rotary table purposes): with the rootation of the coordinate function and fixed point through the output function, can be smooth and high-precision control of rotary table SGMGH-09ACA21.
FT006 (fixed point through the output function): no need to pass through the upper device can bee set through the output (Chu Fa) SGMGH-09ACA21.
FT008 (absolute value system support): the absolute value of the system can be constructed by any upper controller.
