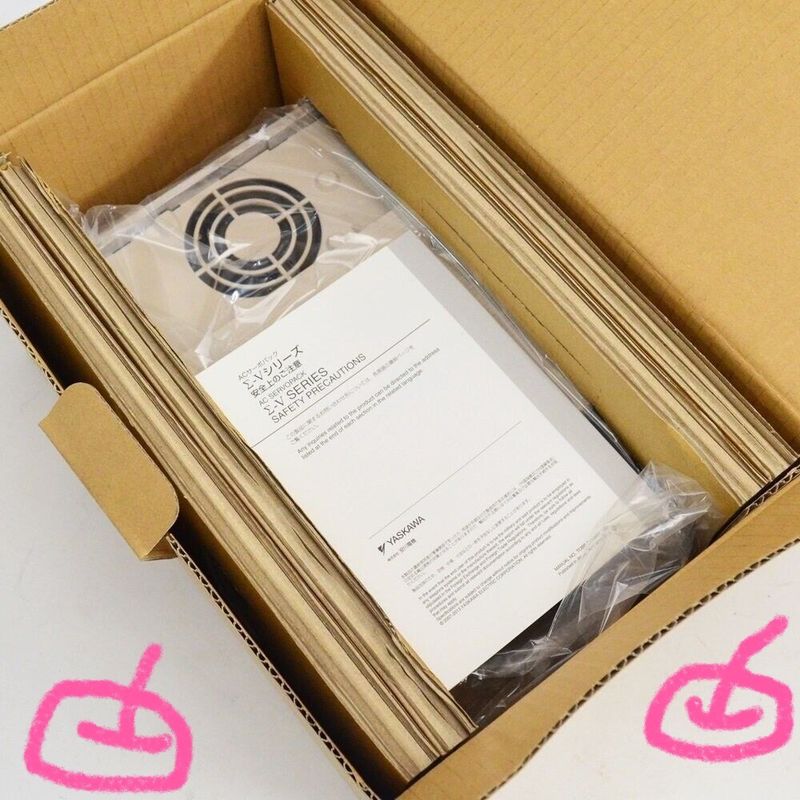

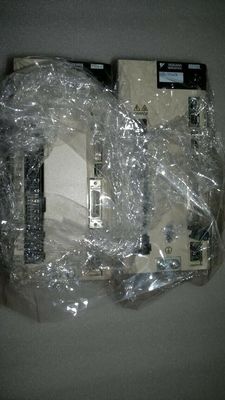

Yaskawa SGDV-5R5A21A AC Servo Amplifier 200-230V 3.7A 750W

Yaskawa SGDV-5R5A21A Product information and technical parameters:
Brand: Yaskawa
Name: Servo driver MECHATROLINK- III communication command type
Model: SGDV-5R5A21A
Sigma -v series servo unit SGDV.
Maximum applicable motor capacity: 0.75kw.
Power supply voltage: three phase AC200V.
Design sequence: A type.
Interface: MECHATROLINK- III communication command type (rotary servo motor).
Matching (hardware): base mounting type (standard).
Realize real time communication

With the maximum transmission speed of 100Mbps and the set of communication cycle 125S ~ 4ms, to achieve a more than 62 stations of the high speed control.
Through the high speed of communication, can send and receive all kinds of control information in real time.
Contribute to cost savings
A maximum of 62 stations can be connected to the communication line, can significantly reduce wiring costs and time.
The command connector of the upper controller only needs 1,
Pulse generator for D/A converter or position instruction without speed / torque command.
High precision motion control is realized.
In addition to torque, position and speed control, but also to achieve high precision synchronization phase control.

Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly.

Sigma -V series servo motor SGMGV.
Rated output: 5.5kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft, without keyway (standard).
Optional: with oil seal.
A variety of mechanical feed shaft drive (high speed feed) Yaskawa SGDV-5R5A21A.
Variety is complete (300W ~ 15kW, with hold brake).

Equipped with a high resolution serial encoder (20 bit)
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C Yaskawa SGDV-5R5A21A.

Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSGM7P type (rated speed: 3000r/min) of inertia and flat servo motor in non speed reducer Yaskawa SGDV-5R5A21A.

Rated output: 0.1kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit absolute value type.
Design sequence: IP67.
Shaft end: straight shaft with keyway, with screw.
Optional parts: no purchase pieces.
Yaskawa servo motor, also known as YASKAWA Yaskawa servo motor,
Origin of Japan, in Shenyang, China, Jiading, Shanghai also has a factory,
Is to make the position of the object, the position, the state and other output controlled,

Automatic control system capable of following an arbitrary change of an input target valuee (or a given value) SGDV-5R5A21A.
It is divided into AC servo motor and DC servo motor,
In the domestic semiconductor, liquid crystal manufacturing devices, electronic components packaging equipment, machine tools and general machinery has been widdely used in SGDV-5R5A21A.
As a leading enterprise for the first time Yaskawa servo drive, put forward the concept of "mechatronics",
Now has become a universal term
