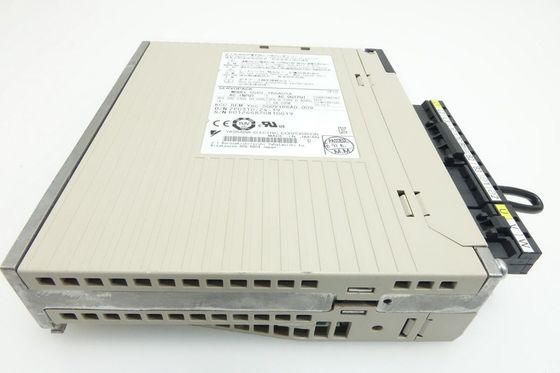

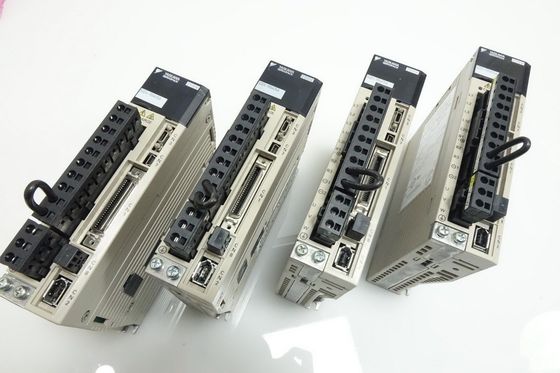

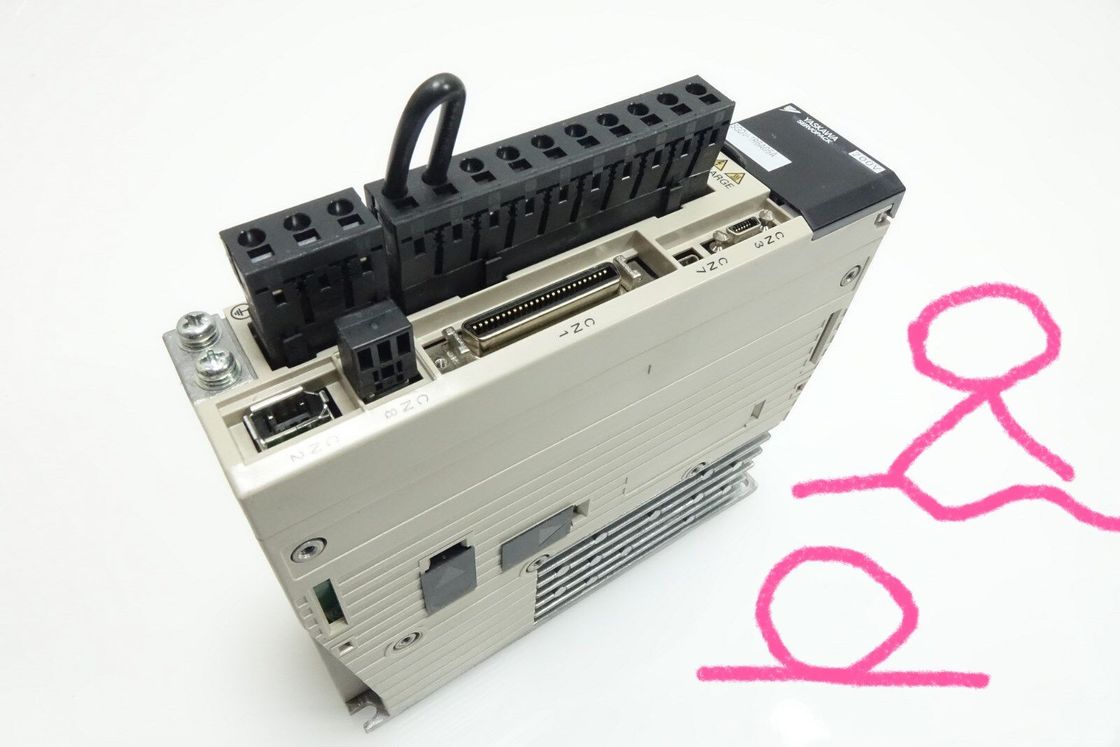

Yaskawa SGDV-7R6A05A AC Servo Amplifier 200-230V 4.9A 1KW

Descriptions Of SGDV-7R6A05A

Servo motor SGMGH type.
Rated speed: 1500r/min.
Power: 5.5kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSecurity module SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL.
Maximum applicable motor capacity: 0.2kw.
Power supply voltage: three phase AC200V.
Interface: MECHATROLINK- II communication command type (linear servo motor).
Design sequence: B.
Hardware specifications: paint.
Matching (software): no matching (standard).
Matching (parameters): no matching (standard).
Optional module: security module.

European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL.
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first).
Can easily achieve the best security design of mechanical systems.
Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions.

In addition, the monitoring time and other items can be changed through the parameter.
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized. Sigma -V series servo motor SGMGV.
Rated output: 850W (0.85kw).
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with hold brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.

Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.

Insulation withstand voltage: AAC1500V 1 minutes (200V), AC1800V 1 minutes (400V) SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL.
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% (not dew) SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

​We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
