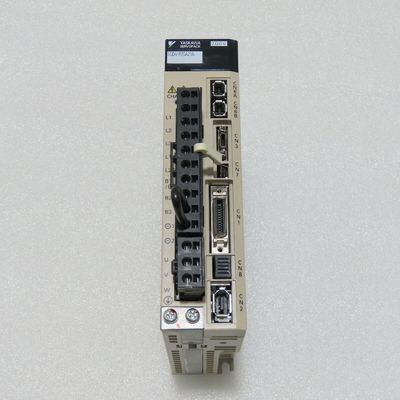

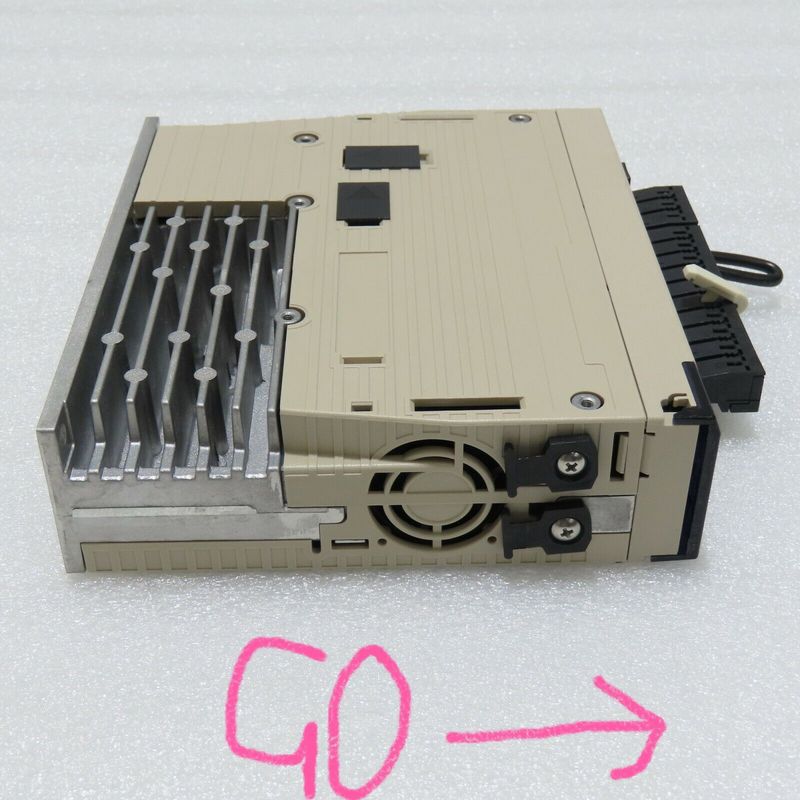

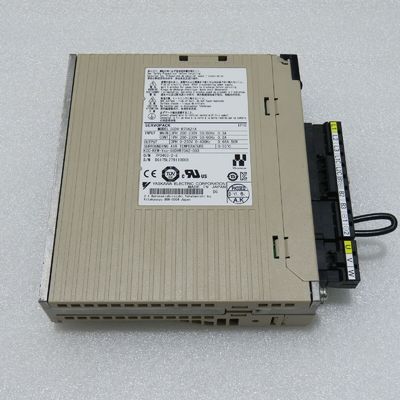

Yaskawa SGDV-R70F21A AC Servo Amplifier 200-230V 0.3A 50W NEW

Descriptions Of SGDV-R70F21A

Yaskawa SGDV-R70F21A Product information and technical parameters:
Brand: Yaskawa
Name: Servo driver MECHATROLINK- III communication command type
Model: SGDV-R70F21A
Sigma -v series servo unit SGDV.
Maximum applicable motor capacity: 0.05kw.
Power supply voltage: single phase AC100V.
Design sequence: A type.
Interface: MECHATROLINK- III communication command type (rotary servo motor).
Matching (hardware): base mounting type (standard).
Realize real time communication
With the maximum transmission speed of 100Mbps and the set of communication cycle 125S ~ 4ms, to achieve a more than 62 stations of the high speed control.

Through the high speed of communication, can send and receive all kinds of control information in real time.
Contribute to cost savings
A maximum of 62 stations can be connected to the communication line, can significantly reduce wiring costs and time.
The command connector of the upper controller only needs 1,
Pulse generator for D/A converter or position instruction without speed / torque command.
High precision motion control is realized.
In addition to torque, position and speed control, but also to achieve high precision synchronization phase control.
Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly.

Servo motor SGMGH type.
Rated speed: 1500r/min.
Power: 15Kw.

Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: high precision machine tool.
Shaft end: straight shaft without key.
Optional parts: with oil seal, DC24V brake.
High speed feed series: high speed running when no load Yaskawa SGDV-R70F21A.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlEquipped with DeviceNet communication function type servo unit (servo controlled power supply drive type)
Maximum applicable motor capacity: 0 Yaskawa SGDV-R70F21A. 2kw.
Power supply voltage: single phase AC100V.
Interface: instruction selection and installation (rotary type servo motor).
Matching (hardware): base mounting type (standard).
Matching (software): standard Yaskawa SGDV-R70F21A.
Matching (parameter): standard.
Optional modules: DeviceNet module (servo control power driver) + full closed loop module.
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.

Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit aare connected through the communication network, the connection is greatly saved SGDV-R70F21A.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function SGDV-R70F21A.

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

​We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
