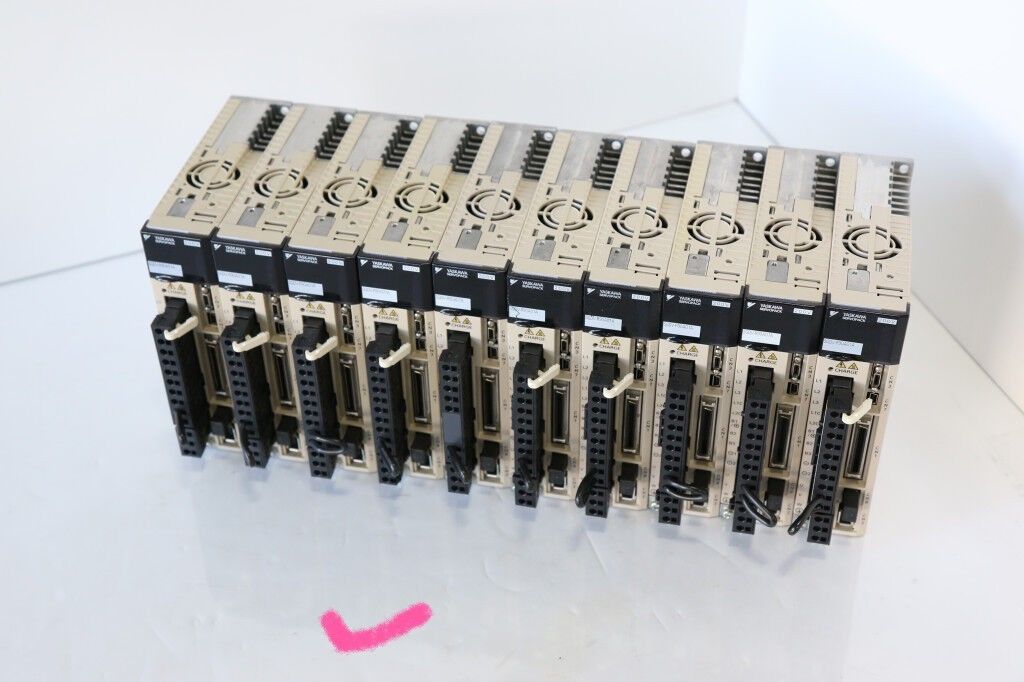

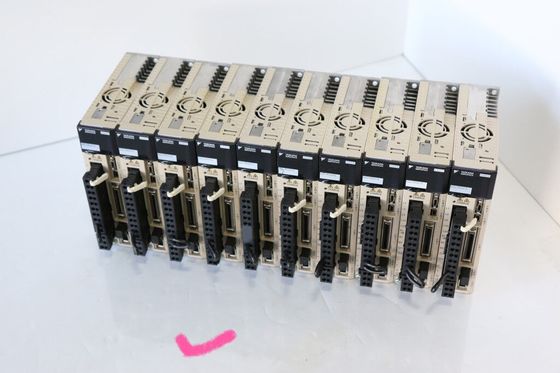

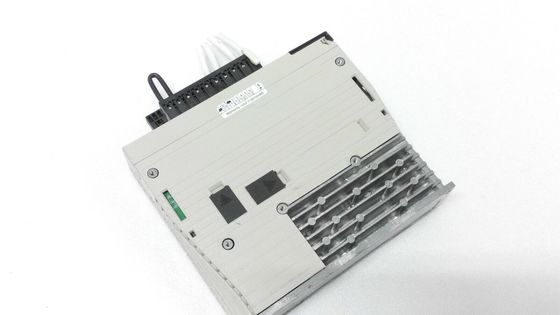

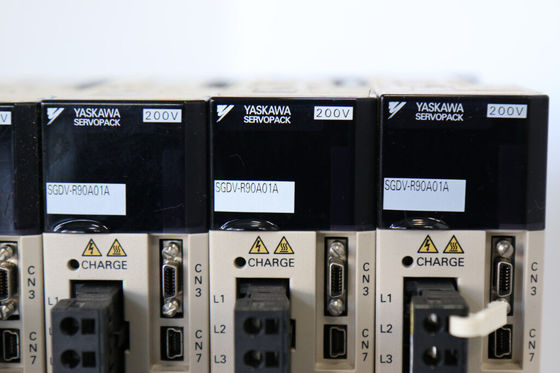

Yaskawa SGDV-R90A01A AC Servo Amplifier 200-230V 0.5A 100W NEW

Descriptions Of SGDV-R90A01A

Yaskawa SGDV-R90A01A Product information and technical parameters:
Brand: Yaskawa
Name: Servo driver analog voltage, pulse sequence
Model: SGDV-R90A01A
Sigma -v series servo unit SGDV.
Maximum applicable motor capacity: 0.1kw.
Power supply voltage: three phase AC200V.
Design sequence: A type.
Interface: analog voltage, pulse sequence type (rotary servo motor).
Matching (hardware): base mounting type (standard).
With the latest technology to pursue the use of convenience.
The use of new non adjustment function, no need to adjust.

The vibration suppression function is also strengthened, and the load fluctuation can be effectively suppressed.
Greatly shorten the setting time.
Using engineering tool SigmaWin+ to set the guide function and the distribution confirmation function,
Can look at the picture simply to complete the start.
Excellent mechanical properties, do the best in the master!
Easy and efficient work, is no longer a dream,
Sigma -v series servo drive, you can make your dreams come true.
Sigma -v series is equipped with new free adjustment function,
Broke the common sense of the servo drive "can''t run smoothly without adjusting",
To achieve a pass that is to use.
A new type of advanced automatic tuning function Sigma -v series,

The installation time can be shortened, and the performance of the machine can be fully played.
Achieve a high response 1kHz above.
Equipped with a new advanced automatic tuning function.
Through the model tracking control, the positioning time is shortened,
And through the vibration suppression function, easy to achieve a smooth mechanical control.

High performance, use the best type of servo unit (purpose type).
Maximum applicable motor capacity: 5.0kw.
Power supply voltage: three phase AC400V.
Interface: MECHATROLINK-III communication command type (linear servo motor).
Design sequence: A.
Hardware specification: dynamic brake (DB).
Function: fixed point through output function Yaskawa SGDV-R90A01A.

Use the best type of sigma -V-FT series
According to different uses, there are 5 equipped with a convenient function of the servo unit models
FT001 (vibration suppression function to upgrade specifications): by strengthening the vibration suppression function, shorten the positioning time.
FT003 (pressure feedback function): high precision pressure control, to promote the high performance of the device Yaskawa SGDV-R90A01A.
FT005 (support for rotary table purposes): with the rotation of the coordinate function and fixed point through the output function, can be smooth and high-precision control of rotary table.
FT006 (fixed point through the output function): no need to pass through the upper device can be set through the output (Chu Fa).
FT008 (absolute value system support): the absolute value of the system can be constructed by any upper controller Yaskawa SGDV-R90A01A. Servo motor SGMGH type.

Rated speed: 1500r/min.
Power: 1.3kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: high precision machine tool.
Shaft end: straight shaft with screw key.
Optional parts: with DC90V brake.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain.
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSGM7P type (rated speed: 3000r/min) of inertia and flat servo motor with speed reducer.
Rated output: 0.2kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit delta.
Design sequence: IP55.
Type of speed reducer: precision HDS planetary reducer.
Reduction ratio: 1/5.
Shaft end: flange output.
Optional parts: with brake (DC24V).

YASKAWA Electric is a professional manufacturer in the field of motion control,
Is Japan''s first to do the servo motor company,
The product is known for its steady and rapid price, and its price is high,
Is the world''s largest sales, the use of the industry''s largest servo brand.
In China, Yasskawa servo for many years occupied the largest market share SGDV-R90A01A.
With the industry''s highest amplifier response, greatly reduced the set time.
YASKAWA Electric is the world''s leading manufacturer of power transmission products.
With the continuous deeepening of China''s reform and opening up and economic development,
Many world-class companies have settled in Shanghai, and quickly expand its business

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

​We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
