Product Details:
Payment & Shipping Terms:
|
| Model: | SGDV-R90A11A | Type: | AC Servo AMPLIFIER |
|---|---|---|---|
| Brand: | Yaskawa | Warranty: | 1 Year |
| Voltage: | 200-230V | Frequency: | 50/60HZ |
| Current: | 0.5A | Power: | 100W |
| High Light: | SGDV-R90A11A AC Servo Amplifier,AC Servo Amplifier 200V |
||

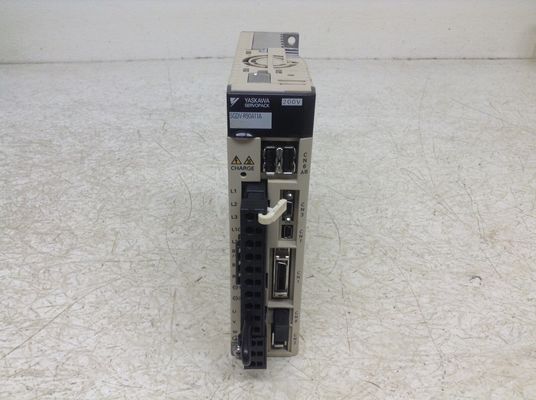

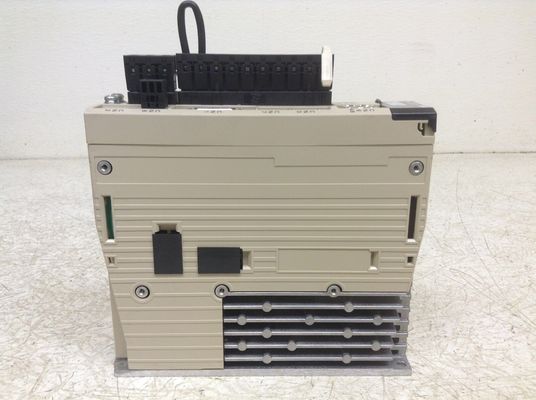

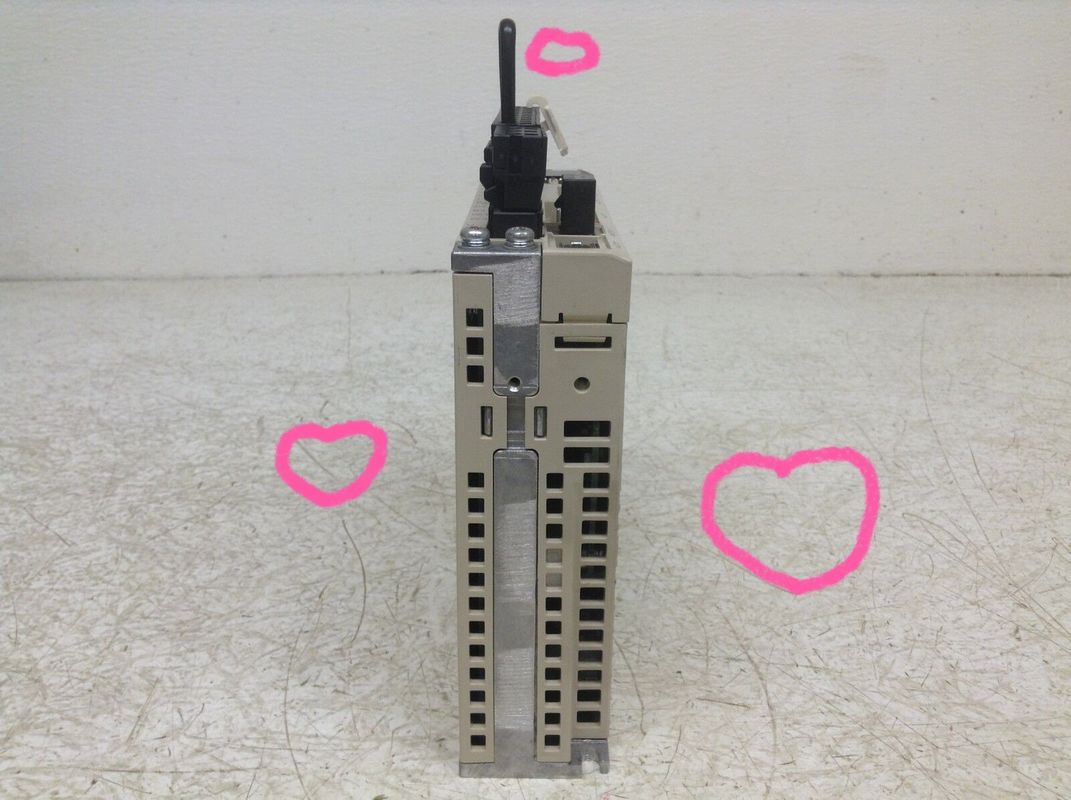

Yaskawa SGDV-R90A11A AC SERVO AMPLIFIER 200-230V 0.5A 100W NEW
Specifications Of SGDV-R90A11A
| Description | SGDV-R90A11A is a Drives-AC Servo produced by Yaskawa |
| Servo Amplifier Type | SGDV Sigma V |
| Current | 0.1kW |
| Voltage | 200VAC; 3 Phase |
| Interface | MECHATROLINK-II communications reference, rotational servomotor |
| Design Revision Order | A |
| Options | Base-mounted (Standard) (blank) |
Descriptions Of SGDV-R90A11A
Equipped with INDEXER functional type servo unit (kit type).
Maximum applicable motor capacity: 1.5kw.
Interface: instruction selection and installation (rotary type servo motor).
Matching (hardware): single phase 200V power input specifications.
Matching (software): standard.
Matching (parameter): standard SGDV-R90A01B002000 Design and Maintenance Manual SGDV-R90A01B002000 USER'S MANUAL.
Optional module: INDEXER+ full closed loop module
Simple.
By programming and serial programming, easy implementation of motion control.
Can also be installed through the Windows environment support tool (SigmaWin+) easy to start.
The I/O module can be connected with the upper controller simply.
Smart.
To support the operation of the main purpose of the positioning operation based on the program table SGDV-R90A01B002000 Design and Maintenance Manual SGDV-R90A01B002000 USER'S MANUAL.
The maximum number of programmable positioning points to 256 points.
With external positioning, JOG speed table operation, the origin of reversion, rich features such as programmable signal output.
I/O points for the input: 19 points, output: 16 points.
Speedy.
High speed and high precision positioning by combining with high performance V series.
Motion control can be realized without using motion controller SGDV-R90A01B002000 Design and Maintenance Manual SGDV-R90A01B002000 USER'S MANUAL. Sigma -V series servo motor SGMGV.
Rated output: 11kw.
Power supply voltage: AC400V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minnutes (200V), AC1800V 1 minutes (400V) SGDV-R90A01B002000 Design and Maintenance Manual SGDV-R90A01B002000 USER'S MANUAL.
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% (not dew) SGDV-R90A01B002000 Design and Maintenance Manual SGDV-R90A01B002000 USER'S MANUAL.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
