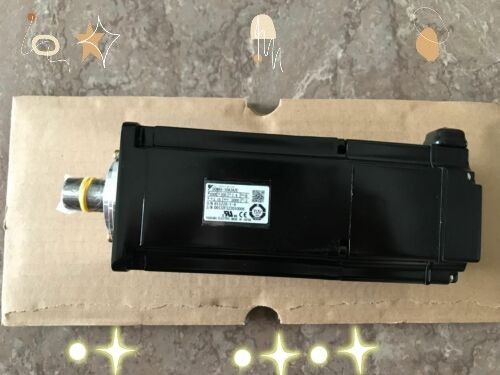

Yaskawa SGMAV-10A3A2C AC SERVO MOTOR 1KW 200V 3000RPM 7.4A NEW

Descriptions Of SGMAV-10A3A2C

Yaskawa SGMAV-10A3A2C Product information and technical parameters:
Brand: Yaskawa
Name: Ultra low inertia servo motor
Model: SGMAV-10A3A2C
Sigma -V series servo motor SGMAV.
Rated output: 1.0kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC24V).
Super power rate.
Small capacity.
Ultra low inertia

Instantaneous maximum torque (rating 300%).
Equipped with a high resolution serial encoder (20 bit).
Max speed up to 6000r/min.
Variety is complete (50W ~ 1.0kw, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.

Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

Servo motor SGMGH type.

Rated speed: 1500r/min.
Power: 7.5Kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: high precision machine tool.
Shaft end: straight shaft with screw key.
Optional parts: with DC24V brake.
High speed feed series: high speed running when no load Yaskawa SGMAV-10A3A2C.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain
Parameter setting device.

The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSigma -V series servo motor SGMGV Yaskawa SGMAV-10A3A2C.
Rated output: 850W (0.85kw).
Power supply voltage: AC400V.
Serial encoder: 20 bit Delta (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with oil seal, with the brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed) Yaskawa SGMAV-10A3A2C.
Variety is complete (300W ~ 15kW, with hold brake).

Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.

Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationServo motor type SGMAH (speed: 3000r/min).
Power: 50W.

Power supply voltage: single phase AC100V.
Serial encoder: 16 bit absolute value.
Design sequence: A.
Shaft end: straight shaft with screw.
Optional parts: with oil seal.
Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original mmodels, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response SGMAV-10A3A2C.
The parameter setting and maintenance time is shortenned SGMAV-10A3A2C.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,

The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

​We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
