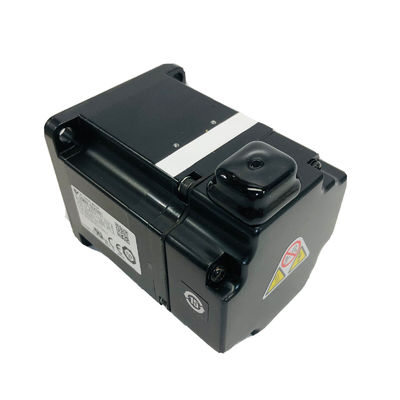

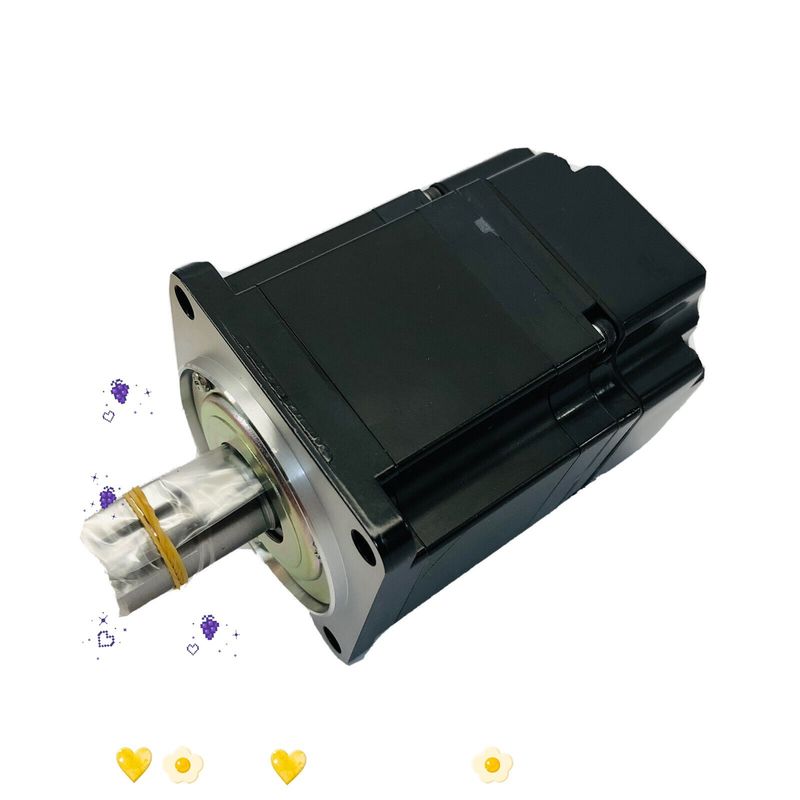

Yaskawa SGMAV-10A3A61 AC SERVO MOTOR 1KW 200V 3000RPM 7.4A NEW

Descriptions Of SGMAV-10A3A61

Yaskawa SGMAV-10A3A61 Product information and technical parameters:
Brand: Yaskawa
Name: Ultra low inertia servo motor
Model: SGMAV-10A3A61
Sigma -V series servo motor SGMAV.
Rated output: 1.0kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: no matching.
Super power rate.
Small capacity.
Ultra low inertia

Instantaneous maximum torque (rating 300%).
Equipped with a high resolution serial encoder (20 bit).
Max speed up to 6000r/min.
Variety is complete (50W ~ 1.0kw, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.

Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

Sigma -V series servo motor SGMSV.

Rated output: 4.0kw.
Power supply voltage: AC400V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC24V).
Super power rate.
Variety is complete (1.0kW ~ 7 Yaskawa SGMAV-10A3A61. 0kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit)
Standard using IP67 (7.0kw for IP22).

Use example:
Placement machine.
Punch printed circuit board.
Machine tool feeding device.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type Yaskawa SGMAV-10A3A61.

Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSGM7P type (rated speed: 3000r/min) of inertia and flat servo motor in non speed reducer Yaskawa SGMAV-10A3A61.
Rated output: 0.2kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit delta.
Design sequence: IP65.

Shaft end: straight shaft, no keyway.
Optional parts: with oil seal.
Yaskawa servo motor, also known as YASKAWA Yaskawa servo motor,
Origin of Japan, in Shenyang, China, Jiading, Shanghai also has a factory,
Is to make the position of the object, the position, the state and other output controlled,
Automatic control system capable of following an arbitrary change of an input target value (or a given value) SGMAV-10A3A61.
It is divided into AC servo motor and DC servo motor,
In the domestic semiconductor, liquid crystal manufacturing devices, electronic components packaging equipment, machine tools and general machinery has been widdely used in SGMAV-10A3A61.
As a leading enterprise for the first time Yaskawa servo drive, put forward the concept of "mechatronics",
Now has become a universal term

The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

​We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
