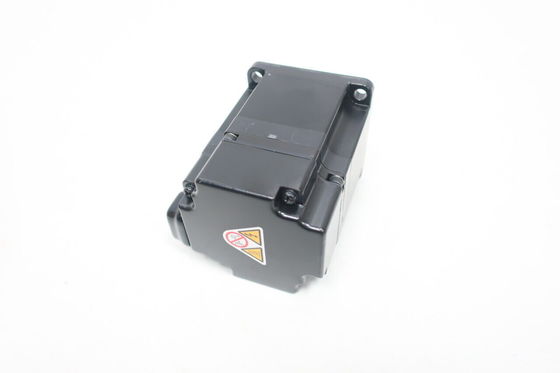

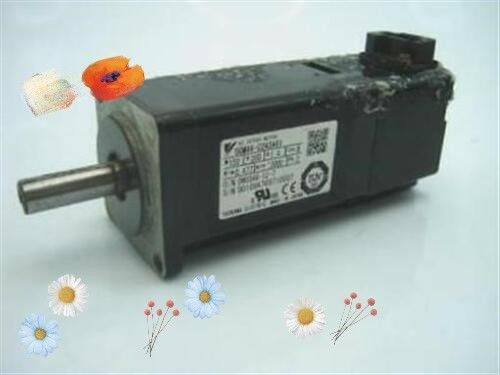

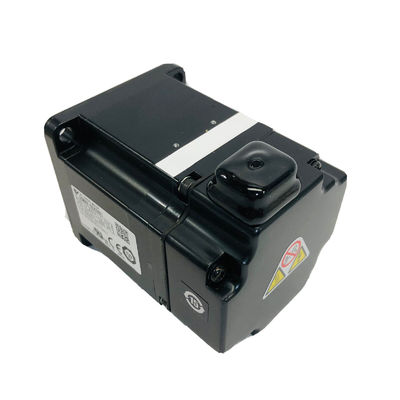

Yaskawa SGMAV-C2A3A61 AC SERVO MOTOR 150W 200V 3000RPM 1.4A NEW

Yaskawa SGMAV-C2A3A61 Product information and technical parameters:
Brand: Yaskawa
Name: Ultra low inertia servo motor
Model: SGMAV-C2A3A61
Sigma -V series servo motor SGMAV.
Rated output: 0.15kw (150W).
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: no matching.
Super power rate.
Small capacity.
Ultra low inertia

Instantaneous maximum torque (rating 300%).
Equipped with a high resolution serial encoder (20 bit).
Max speed up to 6000r/min.
Variety is complete (50W ~ 1.0kw, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.

Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.

Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

Servo motor type SGMPH (speed: 3000r/min).
Power: 0.1kw.
Power supply voltage: single phase AC200V.
Serial encoder: 16 bit relative value.
Design sequence: Waterproof standard IP67.
Shaft end: straight shaft with key.
Optional parts: with DC90V brake.
Partial flat series: the need to install the servo motor in a small space Yaskawa SGMAV-C2A3A61.

Flexible user system.
For you to build the best system to enrich the product line to support you Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operatedSigma -v series servo unit SGDV Yaskawa SGMAV-C2A3A61.
Maximum applicable motor capacity: 11kw.
Power supply voltage: three phase AC400V.
Design sequence: B type.

Interface: MECHATROLINK- III communication command type (linear servo motor).
Matching (hardware): paint Yaskawa SGMAV-C2A3A61.
Realize real time communication
With the maximum transmission speed of 100Mbps and the set of communication cycle 125S ~ 4ms, to achieve a more than 62 stations of the high speed control.
Through the high speed of communication, can send and receive all kinds of control information in real time.
Contribute to cost savings

A maximum of 62 stations can be connected to the communication line, can significantly reduce wiring costs and time.
The command connector of the upper controller only needds 1,
Pulse generator for D/A converter or position instruction without speed / torque command SGMAV-C2A3A61.
High precision motion control is realized.
In addition to torque, position and speed control, but also to achieve high precision synchronizzation phase control SGMAV-C2A3A61.
Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly.
