Model: | SGMPH-15AAA2C | Type: | AC Servo Motor |
---|---|---|---|
Brand: | Yaskawa | Warranty: | 1 Year |
Rotated Speed: | 3000RPM | Power: | 1.5KW |
Current: | 7.5A | Voltage: | 200V |

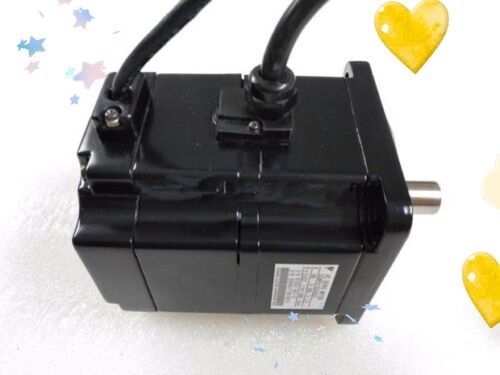

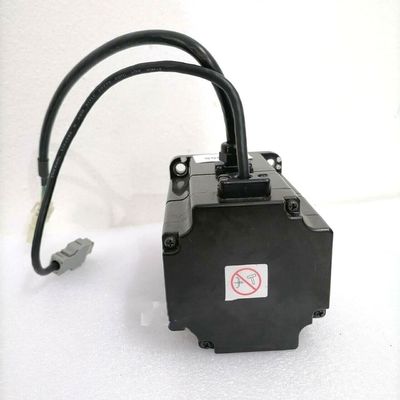

Yaskawa SGMPH-15AAA2C AC SERVO MOTOR 1.5KW 3000RPM 200V 7.5A NEW
Specifications Of SGMPH-15AAA2C
Description | SGMPH-15AAA2B is a Motors-AC Servo produced by Yaskawa |
Servomotor Type | SGMPH Sigma II |
Rated Output | 1.5kW (2.0HP) |
Power Supply | 200V |
Encoder Specifications | 13-bit (2048 x 4) Incremental Encoder |
Design Revision Order | A |
Shaft End Specifications | Straight without key |
Accessories | Standard with 90VDC Brake |
Descriptions Of SGMPH-15AAA2C
Yaskawa SGMPH-08AAA2C Product information and technical parameters:
Brand: Yaskawa
Name: Servo motor
Model: SGMPH-08AAA2C
Servo motor type SGMPH (speed: 3000r/min).
Power: 0.75kw.
Power supply voltage: three phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with DC24V brake.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated..
Capacity type of direct drive servo motor SGMCS.
Rated torque: M / 110N.
Servo motor outside diameter size: 360mm.
Serial encoder: 20 bit Delta (optional).
Design sequence: the outer diameter size of the servo motor is marked as N and M.
Flange specification: face C, reverse load side.
Optional specifications: no matching Yaskawa SGMPH-08AAA2C.
Under the condition of no speed reducer, the load is directly driven
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 6 ~ 600N / m, maximum speed: 250 ~ 500r/min).
By using 20 bit high resolution encoder, the high precision can be carried out.
The use of hollow structure, convenient wiring and piping.
Use example:
Semiconductor manufacturing equipment Yaskawa SGMPH-08AAA2C.
Liquid crystal circuit board manufacturing equipment.
Various inspection and test equipment.
Electronic part packaging machine.
IC information processor.
IC inspection equipment.
A variety of automated machinery.
Robot.
Capacity rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C Yaskawa SGMPH-08AAA2C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: A.
Insulation withstand voltage: AC1500V 1 minutes.
Protection mode: fully enclosed self cooling type IP42 (except for the rotating part of the output shaft).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSGM7P type (rated speed: 3000r/min) of inertia and flat servo motor with speed reducer.
Rated output: 0.2kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit absolute value type.
Design sequence: IP55.
Type of speed reducer: precision HDS planetary reducer.
Reduction ratio: 1/33.
Shaft end: straight shaft with keyway, with screw.
Optional parts: with brake (DC24V).
YASKAWA Electric is a professional manufacturer in the field of motion control,
Is Japan''s first to do the servo motor company,
The product is known for its steady and rapid price, and its price is high,
Is the world''s largest sales, the use of the industry''s largest servo brand.
In China, Yasskawa servo for many years occupied the largest market share SGMPH-08AAA2C.
With the industry''s highest amplifier response, greatly reduced the set time.
YASKAWA Electric is the world''s leading manufacturer of power transmission products.
With the continuous deeepening of China''s reform and opening up and economic development,
Many world-class companies have settled in Shanghai, and quickly expand its business
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
