Product Details:
Payment & Shipping Terms:
|
Model: | SGMSH-15ACA21 | Type: | AC Servo Motor |
---|---|---|---|
Brand: | Yaskawa | Warranty: | 1 Year |
Rotated Speed: | 3000RPM | Power: | 1.5KW |
Current: | 9.7A | Voltage: | 200V |

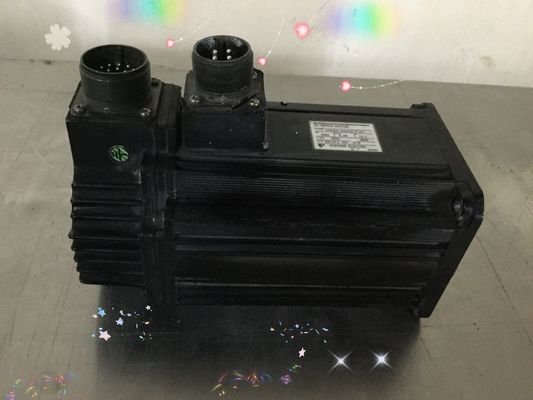

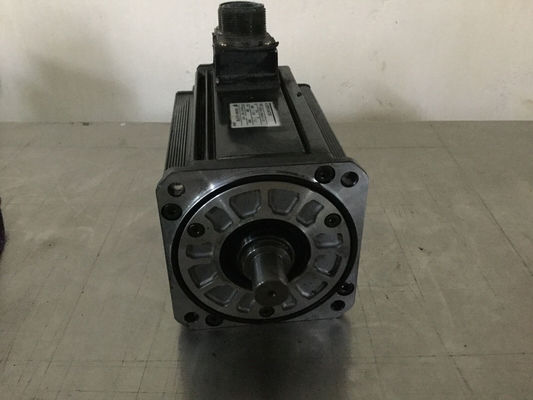

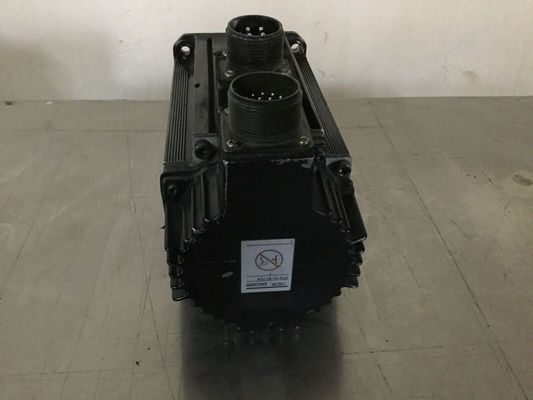

Yaskawa SGMSH-15ACA21 AC SERVO MOTOR 1.5KW 3000RPM 200V 9.7A NEW
Specifications Of SGMSH-15ACA21
Description | SGMSH-15ACA21 is a Motors-AC Servo produced by Yaskawa |
Servomotor Type | SGMSH Sigma II |
Rated Output | 1.5kW (2.0HP) |
Power Supply | 200V |
Encoder Specifications | 17-bit Incremental Encoder |
Revision Level | A |
Shaft Specifications | Straight without key |
Accessories | Standard |
Descriptions Of SGMSH-15ACA21
Yaskawa SGMJV-08AAA6C Product information and technical parameters:
Brand: Yaskawa
Name: Middle inertia rotary servo motor
Model: SGMJV-08AAA6C
Sigma -V series servo motor SGMJV.
Rated output: 0.75KW (750W).
Power supply voltage: AC200V.
Serial encoder: 13 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with hold brake (DC24V).
Medium inertia.
Instantaneous maximum torque (rating 350%).
Equipped with a high resolution serial encoder (13/20 bit).
Max speed up to 6000r/min.
Variety is complete (50 ~ 750W, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V 1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
Sigma -V series servo motor SGMGV.
Rated output: 850W (0.85kw).
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with oil seal, with the brake (DC90V) Yaskawa SGMJV-08AAA6C.
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake)
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above Yaskawa SGMJV-08AAA6C.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection Yaskawa SGMJV-08AAA6C.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSGM7P type (rated speed: 3000r/min) of inertia and flat servo motor with speed reducer.
Rated output: 0.4kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit absolute value type.
Design sequence: IP55.
Type of speed reducer: precision HDS planetary reducer.
Reduction ratio: 1/33.
Shaft end: straight shaft, no keyway.
Optional parts: no purchase pieces.
YASKAWA Electric is a professional manufacturer in the field of motion control,
Is Japan''s first to do the servo motor company,
The product is known for its steady and rapid price, and its price is high,
Is the world''s largest sales, the use of the industry''s largest servo brand.
In China, Yasskawa servo for many years occupied the largest market share SGMJV-08AAA6C.
With the industry''s highest amplifier response, greatly reduced the set time.
YASKAWA Electric is the world''s leading manufacturer of power transmission products.
With the continuous deeepening of China''s reform and opening up and economic development,
Many world-class companies have settled in Shanghai, and quickly expand its business
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
