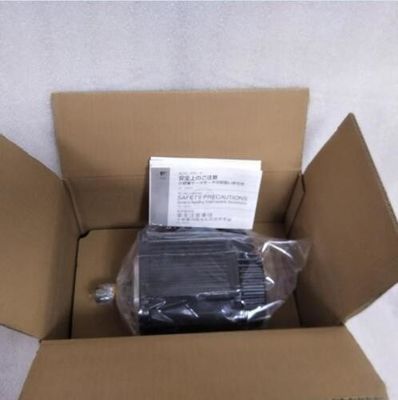

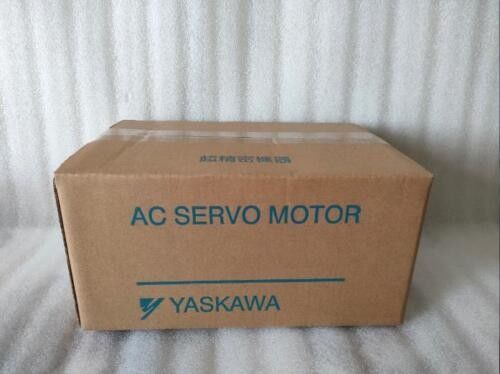

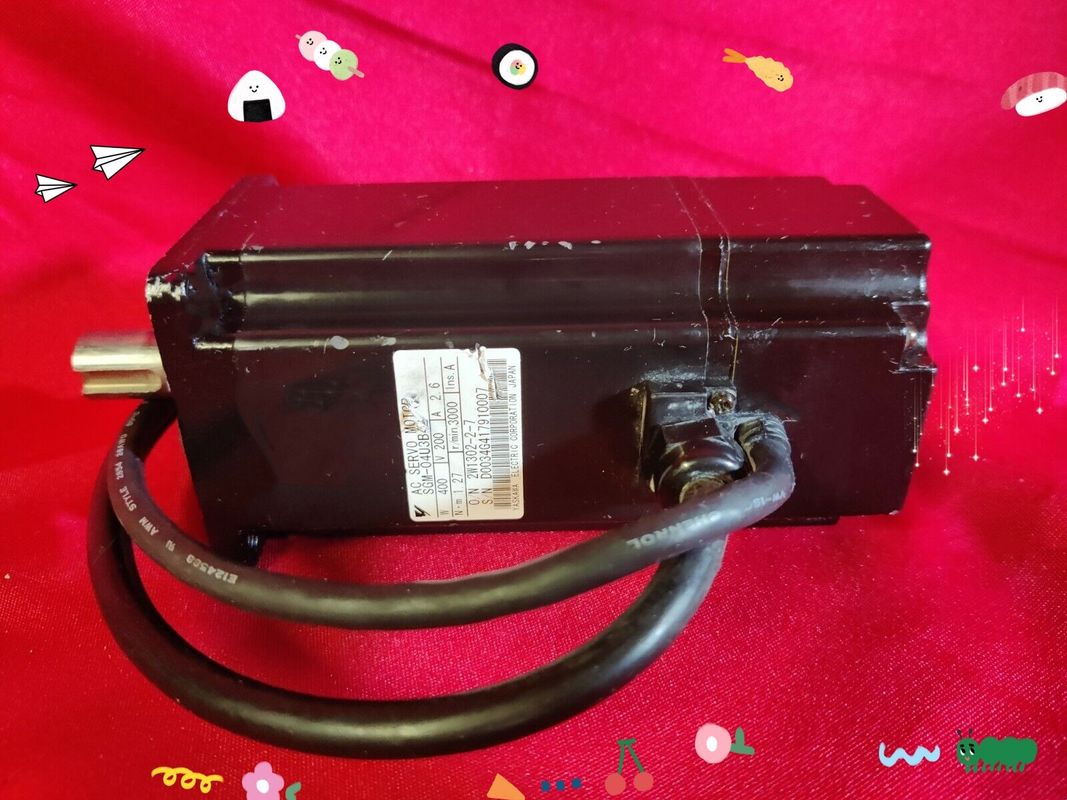

Yaskawa SGM-04U3B4L AC Servo Motor 400W 3000RPM 200V 2.6A NEW

Descriptions Of SGM-04U3B4L

Yaskawa SGMAH-08AAA61 Product information and technical parameters:
Brand: Yaskawa
Name: servo motor
Model: SGMAH-08AAA61
Servo motor type SGMAH (speed: 3000r/min).
Power: 0.75kw.
Power supply voltage: three phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft with screw key.
Optional parts: no brake oil seal.
Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Sigma -V series servo motor SGMSV.

Rated output: 1.0kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with oil seal, with the brake (DC90V).
Super power rate.
Variety is complete (1 Yaskawa SGMAH-08AAA61. 0kW ~ 7.0kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit)
Standard using IP67 (7.0kw for IP22).

Use example:
Placement machine.
Punch printed circuit board.
Machine tool feeding device.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C Yaskawa SGMAH-08AAA61.
Excitation mode: permanent magnet type.
Installation method: flange type.

Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSecurity module Yaskawa SGMAH-08AAA61.
Maximum applicable motor capacity: 3.0kw.
Power supply voltage: three phase AC400V.
Interface: MECHATROLINK- III communication command type (rotary servo motor).
Design sequence: A.

Hardware specifications: paint.
Matching (software): no matching (standard).
Matching (parameters): no matching (standard).
Optional module: security module.
European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function.
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first).
Can easily achieve the best security design of mechannical systems SGMAH-08AAA61.

Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions.
In addition, the monitoring time and other itemms can be changed through the parameter SGMAH-08AAA61.
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized.
