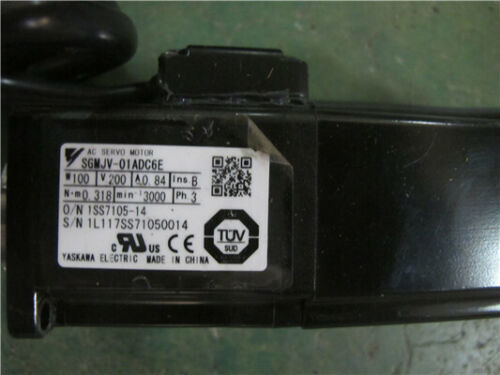

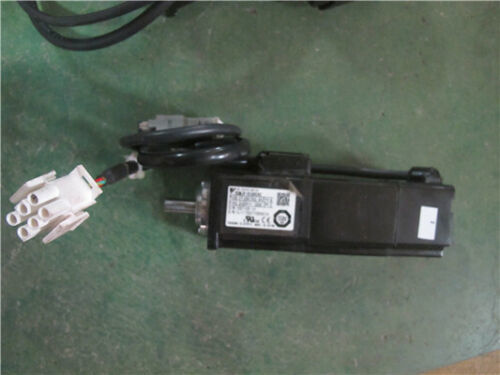

Yaskawa SGMJV-01ADC6E AC Servo Motor 100W 3000RPM 200V 0.84A NEW

Descriptions Of SGMJV-01ADC6E

Sigma -V series servo motor SGMAV.
Rated output: 0.1kw (100W).
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: no matching.
Super power rate.
Small capacity.
Ultra low inertia
Instantaneous maximum torque (rating 300%).
Equipped with a high resolution serial encoder (20 bit).

Max speed up to 6000r/min
Variety is complete (50W ~ 1.0kw, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.

Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.

Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationEquipped with INDEXER functional type servo unit (kit type).
Maximum applicable motor capacity: 0.4kw.
Power supply voltage: three phase AC200V.
Interface: instruction selection and installation (linear servo motor).
Matching (hardware): paint.
Matching (software): standard.
Matching (parameter): standard.
Optional modules: INDEXER module.
Simple.

By programming and serial programming, easy implementation of motion control.
Can also be installed through the Windows environment support tool (SigmaWin+) easy to start.
The I/O module can be connected with the upper controller simply.
Smart.
To support the operation of the main purpose of the positioning operation based on the program table.
The maximum number of programmable positioning points to 256 points.
With external positioning, JOG speed table operation, the origin of reversion, rich features such as programmable signal output.
I/O points for the input: 19 points, output: 16 points.
Speedy.
High speed and high precision positioning by combining with high performance V series.
Motion control can be realized without using motion controller.
