Product Details:
Payment & Shipping Terms:
|
Brand: | AB | Model: | 1746-ITB16 |
---|---|---|---|
Type: | Digital DC Input Module | Origin Of Country: | USA |
Series: | SLC 500 | Voltage Range: | 15-30 Volts DC Sink |
Highlight: | 85MA I/O MODULE,1746-ITB16 I/O MODULE,ALLEN BRADLEY 1746-ITB16 I/O MODULE DIGITAL |
Quick Detials
ALLEN BRADLEY
1746-ITB16
1746-ITB16
INPUT MODULE
SLC500
DIGITAL
32 POINT
8PT/COMMON
SINK LOAD
15-30VDC AT 50C 122F
15-26.4VDC AT 60C 140F
BACKPLANE CURRENT 50MA AT 5V
one year warranty
SPECIFICATIONS

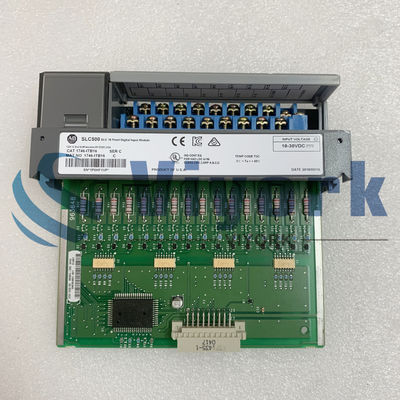

The 1746-ITB16 is a SLC 500 Digital DC Input Module.
This Digital DC Input Module has a Voltage Range of 15-30 Volts DC Sink and 32 Inputs with a Backplane Current (5 Volts DC) of 103 milliamps.
About 1746-ITB16
The 1746-IB32 SLC 500 24 Volt DC Digital Output Module by is a 32-point current sinking input module with 24 Volt DC input voltage with an 8-point group per common. It has a temperature-dependent sinking voltage range of 15 to 30 Volt DC at 50 degrees Celsius and 15 to 26.4 Volts DC at 60 degrees Celsius and has an overall backplane electrical rating of 0.050A at 5 Volts DC and 0.0A at 24 Volts DC respectively. The 1746-IB32 offers isolation from the backplane tested at 1500 Volts AC for 60 seconds between the backplane and the I/O and it has a 1500 Volt AC dielectric withstand. The 1746-IB32’s 32-input point is electrically-fused for protection over the external wiring and it has a maximum of a single 2.5A non-replaceable fuse per common.
The minimum voltage across its circuit in the ON state is 15.0 Volts DC and in its OFF state, it has a maximum voltage drop of 5.0 Volts DC and a maximum leakage current of 1.5 mA. The 1746-IB32 module has a maximum signal delay time of 3ms across its inputs in the ON and the OFF mode and it has an overall nominal input current of 5.1 mA at 24 Volts DC nominal voltage. It has a maximum 0.2 Watt power dissipation on each input point and it has a 6.67 aggregate power dissipation on the module. The 1746-IB32 has an operating temperature bracket between 0 and 60 degrees Celsius (32 and 140 degrees Celsius) at 5 to 95% non-condensing humidity and it has an operational vibrational withstand of 1G at 5 to 200 Hertz and a shock rating of 30G.
Technical specifications:
Manufacturer |
|
Brand |
|
Part Number/Catalog No. |
1746-ITB16 |
Series |
SLC 500 |
Module Type |
Digital DC Input Module |
Voltage Range |
15-30 Volts DC Sink |
Inputs |
32 |
Backplane Current (5 Volts DC) |
103 milliamps |
Signal delay |
3 milliseconds |
Off State Current |
1 milliamps |
Applications |
General Purpose DC Inputs |
I/O Connection |
1746-HT and 1746-HCA |
Step Response |
100 milliseconds in, 2.5 milliseconds out |
Shock rating |
30G |
