Product Details:
Payment & Shipping Terms:
|
| Brand: | Mitsubishi | Model: | Mitsubishi FR-A840-00126-2-60 |
|---|---|---|---|
| Type: | Industrial Inverter | Origin Of Country: | Japan |
| Voltage: | 380-500V | Condition: | NEW |

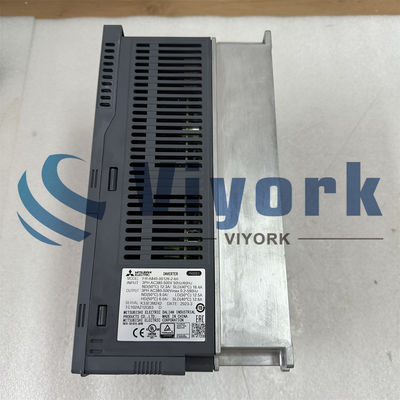

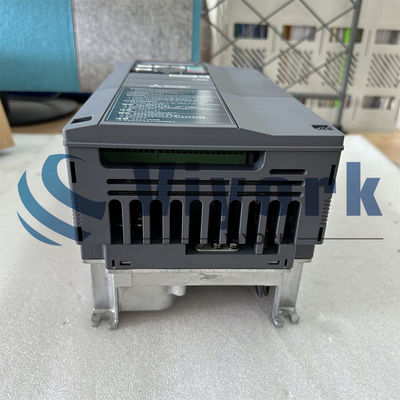

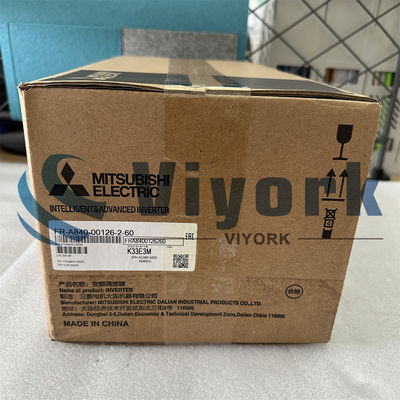

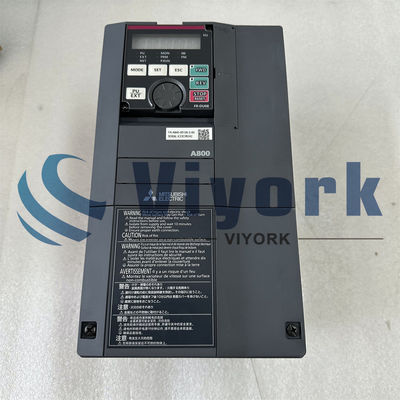

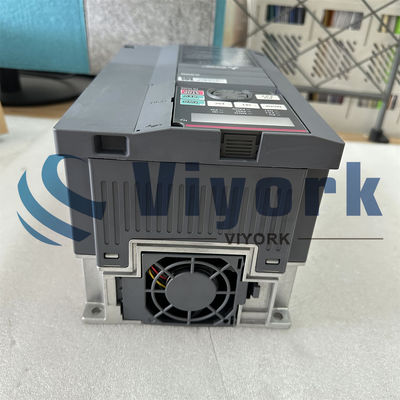

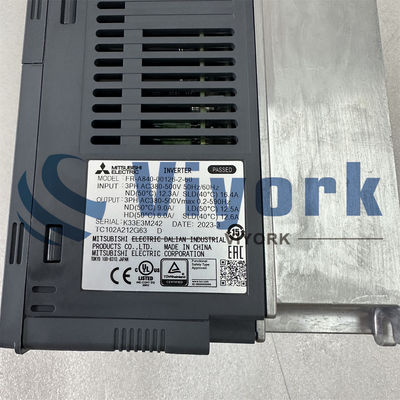

FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
DESCRIPTION
|
Series |
FR-A SERIES |
|
Type |
FR-A800-E INVERTER |
|
Minimum Rated Voltage (V) |
380 |
|
Min. Permissible Voltage (V) |
323 |
|
Maximum Rated Voltage (V) |
500 |
|
Max. Permissible Voltage (V) |
550 |
|
Current Type |
AC |
|
Phases |
3 |
|
Rated Output Current SLD (A) |
12,6 |
|
Rated Output Current LD (A) |
11,5 |
|
Rated Output Current ND (A) |
9 |
|
Rated Output Current HD (A) |
6 |
|
Rated Motor Capacity SLD (kW) |
5,5 |
|
Rated Motor Capacity LD (kW) |
5,5 |
|
Rated Motor Capacity ND (kW) |
3,7 |
|
Rated Motor Capacity HD (kW) |
2,2 |
|
Frequency Range (Hz) |
0,2–590 |
|
Control Method |
VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
|
Motor Type |
INDUCTION MOTOR, PM MOTOR |
|
Brake Chopper ED (%) |
100 |
|
Integrated EMC Filter |
YES |
|
Safe Torque Off (STO) |
YES |
|
Regenerative (4Q) |
NO |
|
Integrated DC Choke |
NO |
|
Display |
FR-DU08 |
|
Display Type |
5 DIGITS LED (12 SEGMENT) |
|
PLC Function |
YES |
|
Program Memory |
6K |
|
Program Memory Unit |
STEPS |
|
Integrated Digital Inputs |
12 |
|
Digital Outputs (Transistor) |
5 |
|
Digital Outputs (Relay) |
2 |
|
Integrated Analogue Inputs |
3 |
|
Integrated Analogue Outputs |
2 |
|
IO Type of Terminal Block |
SPRING CLAMP |
|
Expandable |
YES |
|
RS-485 |
OPTIONAL |
|
USB |
1+1 MINI |
|
Ethernet Port |
1 |
|
Built-In Network |
CC-LINK IE FIELD NETWORK, MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC |
|
Leakage Current (mA) |
35(DELTA) / 2(STAR) |
|
Power Loss SLD (W) |
175 |
|
Power Loss LD (W) |
160 |
|
Power Loss ND (W) |
130 |
|
Power Loss HD (W) |
90 |
|
Standby Power Consumption (W) |
19 |
|
Protection Class |
IP20 |
Details
AC Motion Servo drive unit / amplifier with fully closed-loop control (four-wire type) - Mitsubishi Electric (MELSERVO J4 series) - Supply voltage 200Vac (Single phase input or 3-phase input / 200Vac-240Vac); 283Vdc-340Vdc - Rated power 100W / 0.1kW - with Encoder input (22-bit / 4194304pulses/revolution resolution) - with RS-422 / RS-485 communication capability - IP20 - with Built-in dynamic brake + Natural cooling - USB connector - compatible with HG-KR053(B); HG-KR013(B); HG-MR053(B); HG-MR013(B); HG-KR053(B)W0C; HG-KR13(B)W0C - rated for 0-55°C ambient
Melservo MR-J Servo Drives and Motors with Amplifier Controllers.
(1) Servo amplifiers and servo motors used Use the servo amplifiers and servo motors which comply with the standard model.
Servo amplifier :MR-J2S-10B to MR-J2S-22KB MR-J2S-10B1 to MR-J2S-40B1
Servo motor :HC-KFS HC-MFS HC-SFS HC-RFS HC-UFS HA-LFS HC-LFS
(2) Installation Install a cooling fan of 100CFM (2.8m3/min) air flow 4 in (10.16 cm) above the servo amplifier or provide cooling of at least
equivalent capability.
(3) Short circuit rating This servo amplifier conforms to the circuit whose peak current is limited to 5000A or less. Having been subjected to the
short-circuit tests of the UL in the alternating-current circuit, the servo amplifier conforms to the above circuit.
(4) Capacitor discharge time The capacitor discharge time is as listed below. To ensure safety, do not touch the charging section for 10 minutes
after power-off.
Showing of parts.
| MR-J | Description | Condition |
| MR-J2S-350B | Mitsubishi MR-J MOTOR (MITMRJ2S350B) | NEW |
| MR-J-350A-S12 | MR-J Servo Amplifier (MRJ350AS12) | NEW |
| MR-J2-100A | MR-J SERVO AMPLIFIER 1KW 3 PHASE 50-60HZ 200-230V (MRJ2100A) | NEW |
| MR-J2-03A5 | MR-J Servo Amplifier 10W 24VDC INPUT (MRJ203A5) | NEW |
| MR-J2-100A-S01 | SERVO DRIVE AMPLIFIER 1KW 200-230V 50-60HZ 3 PHASE (MRJ2100AS01) | NEW |
| MR-J2-100B | MR-J SERVO DRIVE 1KW 200V (MRJ2100B) | NEW |
| MR-J2-100C | MR-J Servo Amplifier 1KW 200V (MRJ2100C) | NEW |
| MR-J2-100C-S100 | Mitsubishi SERVO CONTROLLER 1KW 200V (MRJ2100CS100) | NEW |
| MR-J2-100CT | Mitsubishi MR-J BOARD (MRJ2100CT) | NEW |
| MR-J2-10A | Mitsubishi MR-J SERVO CONTROLLER 100W 200V (MRJ210A) | NEW |
| MR-J2-10A1 | SERVO DRIVE 0.1KW 3 AMP 100-120VAC 1 PHASE (MRJ210A1) | NEW |
| MR-J2-10B | MR-J Servo Amplifier 100W 200V SSC NETWORK (MRJ210B) | NEW |
| MR-J2-10C | SERVO CONTROLLER 3 PHASE 100W 0.9 AMP 200-230VAC (MRJ210C) | NEW |
| MR-J2-40A-A28 | Servo Amplifier 400W 230V 50/60HZ (MRJ240AA28) | NEW |
