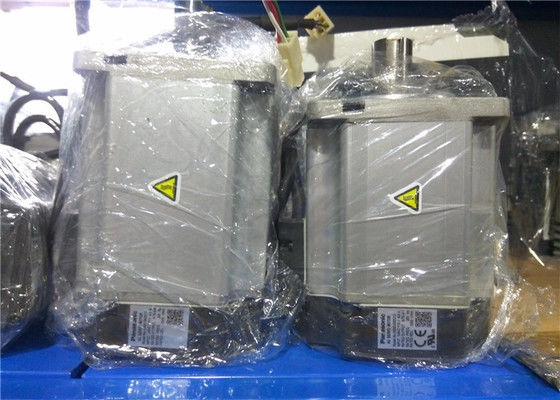

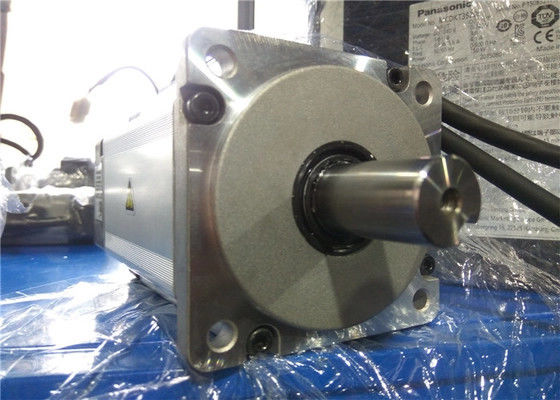

MHMD082G1U Panasonic AC Servo Motor 3000 RPM 750W Incremental 200VAC Out Analog Input

Large Image : MHMD082G1U Panasonic AC Servo Motor 3000 RPM 750W Incremental 200VAC Out Analog Input Get Best Price

Product Details:

Place of Origin:	JAPAN
Brand Name:	Panasonic
Certification:	CE
Model Number:	MHMD082G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact
Packaging Details:	New and original
Delivery Time:	3-5days
Payment Terms:	T/T/Palpal
Supply Ability:	1000

Contact Now

Detailed Product Description

Manufacturer:	Panasonic	Power Supply Voltage:	MHMD082G1U
Country Of Origin::	Japan	Supply Voltage:	3-phase 200 V
Warranty::	1year	Highlight::	Ac Servo Motor, Electric Servo Motor
Highlight:	Panasonic AC Servo motor , 750W Servo motor , 3000 RPM Servo motor

MHMD082G1U AC Motor Servomotor 3000 RPM 750W Incremental 200VAC Panasonic

Descriptions:

Servo; A5; 750W; 20 Bit Incremental Encoder; 200V Motor; Key & Tap Shaft (OS)

A5 - 750W 20 Bit Incremental Encoder, 200V Motor, Key & Tap Shaft (Oil Seal)

SERVOMOTOR 3000 RPM 200VAC

Technical Specifications:

Physical
Weight	5.5 lb
Technical
Encoder Type	Incremental
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Power Rating	750 W
RPM	3000 RPM
Termination	Wire Leads
Dimensions
Mounting Hole Spacing	3.543 inch
Compliance
Approvals	UL , CSA , CE , TUV
RoHS	Compliant

Product Overview:

Digi-Key Part Number	1110-4022-ND
Quantity Available	8 Can ship immediately
Manufacturer	Panasonic Industrial Automation Sales
Manufacturer Part Number	MHMD082G1U
Description	SERVOMOTOR 3000 RPM 200VAC
Manufacturer Standard Lead Time	11 Weeks
Detailed Description	AC Motor Servomotor 3000 RPM 750W Incremental 200VAC

Product Attributes	Select All
Categories	Motors, Solenoids, Driver Boards/Modules
Categories	Motors - AC, DC
Manufacturer	Panasonic Industrial Automation Sales
Series	MINAS A5
Part Status	Active
Type	AC Motor
Function	Servomotor
Motor Type	-
Voltage - Rated	200VAC
RPM	3000 RPM
Torque - Rated (oz-in / mNm)	339.9 / 2400
Power - Rated	750W
Encoder Type	Incremental
Size / Dimension	Square - 3.150" x 3.150" (80.00mm x 80.00mm)
Diameter - Shaft	0.748" (19.00mm)
Length - Shaft and Bearing	1.378" (35.00mm)
Mounting Hole Spacing	3.543" (90.00mm)
Termination Style	Wire Leads
Features	Key, Oil Seal
Gear Reduction Ratio	-
Torque - Max Momentary (oz-in / mNm)	1005 / 7100
Operating Temperature	0°C ~ 40°C
Approvals	CE, CSA, cULus, TUV, UL
Weight	5.5 lbs (2.5kg)

The following are some of the drive models, both new and used are stocked:

MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB MSM011P1N
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A MQMA012P1B
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E

Below models are also available:

Mitsubishi servo motors HC-MFS/KFS SERIES
<50W>	<100W>
HC-MFS/KFS053K	HC-MFS/KFS13K
HC-MFS/KFS053D	HC-MFS/KFS13D
HC-MFS/KFS053B	HC-MFS/KFS13B
HC-MFS/KFS053BD	HC-MFS/KFS13BD
HC-MFS/KFS053G1(1/5)	HC-MFS/KFS13G1(1/5)
HC-MFS/KFS053G1(1/12)	HC-MFS/KFS13G1(1/12)
HC-MFS/KFS053G1(1/20)	HC-MFS/KFS13G1(1/20)
HC-MFS/KFS053BG1(1/5)	HC-MFS/KFS13BG1(1/5)
HC-MFS/KFS053BG1(1/12)	HC-MFS/KFS13BG1(1/12)
HC-MFS/KFS053BG1(1/20)	HC-MFS/KFS13BG1(1/20)
HC-MFS/KFS053G2 (1/5)	HC-MFS/KFS13G2 (1/5)
HC-MFS/KFS053G2 (1/9)	HC-MFS/KFS13G2 (1/9)
HC-MFS/KFS053G2 (1/20)	HC-MFS/KFS13G2 (1/20)
HC-MFS/KFS053G2 (1/29)	HC-MFS/KFS13G2 (1/29)
HC-MFS/KFS053BG2 (1/5)	HC-MFS/KFS13BG2 (1/5)
HC-MFS/KFS053BG2 (1/9)	HC-MFS/KFS13BG2 (1/9)
HC-MFS/KFS053BG2 (1/20)	HC-MFS/KFS13BG2 (1/20)
HC-MFS/KFS053BG2 (1/29)	HC-MFS/KFS13BG2 (1/29)

MR-J3 Series servo amplifier and motor
AMPLIFIER	MOTOR
MR-J3-10A/B	HF-MP053	HF-MP73B
MR-J3-20A/B	HF-MP13	HF-KP053B
MR-J3-40A/B	HF-MP23	HF-KP13B
MR-J3-60A/B	HF-MP43	HF-KP23B
MR-J3-70A/B	HF-MP73	HF-KP43B
MR-J3-100A/B	HF-KP053	HF-KP73B
MR-J3-200A	HF-KP13	HF-SP52
MR-J3-350A	HF-KP23	HF-SP102
MR-J3-500A	HF-KP43	HF-SP152
MR-J3-700A	HF-KP73	HF-SP202
MR-J3-200B	HF-MP053B	HF-SP352
MR-J3-350B	HF-MP13B	HF-SP502
MR-J3-500B	HF-MP23B	HF-SP702
MR-J3-700B	HF-MP43B	HF-SP52B
