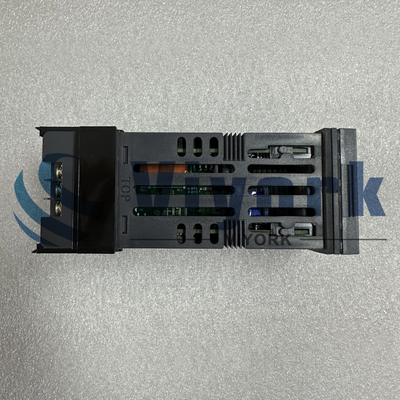

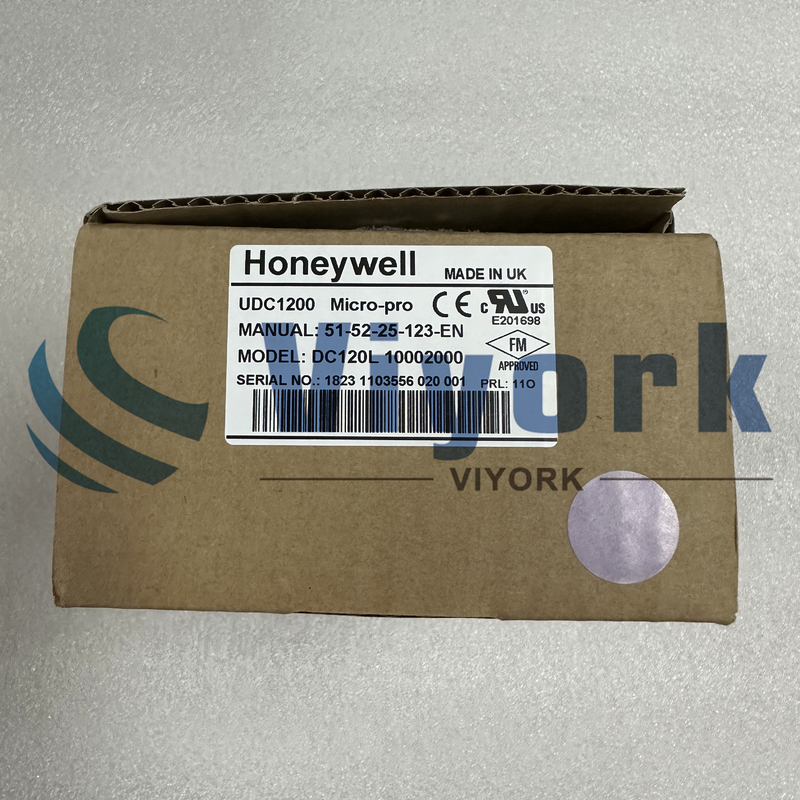

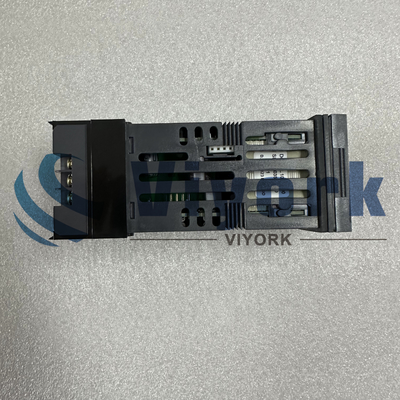

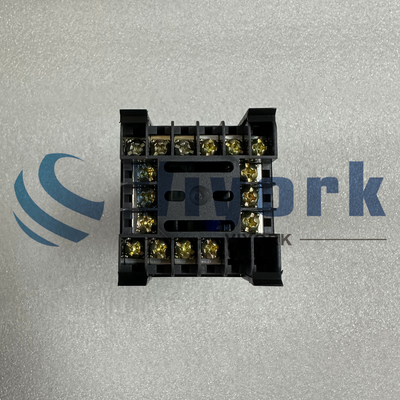

Honeywell DC120L 10002000 / DC120L10002000 Micro Pro UDC1200 NEW

HONEYWELL DC120L 10002000 / DC120L10002000 Micro-Pro UDC1200 NEW

Honeywell DC120L10002000 Temperature Controller - Product Overview

The DC120L10002000 is part of Honeywell's DC1000 series of microprocessor-based temperature controllers, designed for precise process control in industrial applications. While the exact "-2000" variant isn't fully detailed in the search results, its specifications align closely with the DC120L-10001000 model 12.

Key Features & Specifications

1. Core Functionality

   • Microprocessor-Based Control: Offers PID (Proportional-Integral-Derivative) or on/off control for temperature regulation, suitable for applications like dryers, semiconductor testing, and plastic processing 12.

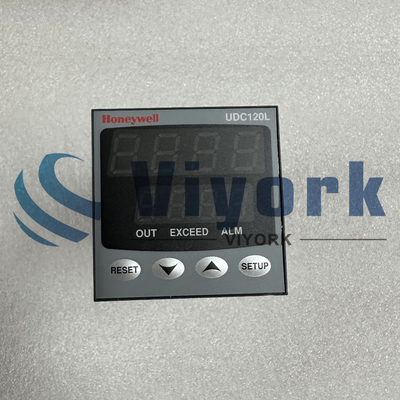

   • Dual Display: Shows PV (Process Value) and SP (Set Value) via 4-digit 7-segment displays 2.

2. Technical Parameters

   • Input Types: Supports thermocouples and RTDs (Resistance Temperature Detectors) 2.

   • Output: SPDT relay contacts (3A @ 240VAC) for control signals 2.

   • Temperature Range:

     • -25°C to 65°C (-13°F to 150°F) 2.

   • Accuracy: ±0.5% full scale with selectable resolution (0.1° or 1°) 2.

3. Design & Compliance

   • DIN Size: 1/16 DIN (panel cutout: 45.5 × 45.5 mm) 2.

   • Power Supply: 90–264V AC, 50/60Hz 2.

   • Certifications: CE-compliant 2.

4. Advanced Features

   • Security: Four-digit security code to prevent unauthorized parameter changes 2.

   • Communication: Some variants support RS-485 or ramp/soak programming (exact compatibility for "-2000" model requires verification) 2.

Applications

• Industrial Uses: Climate chambers, packaging machinery, paint/coating systems, and semiconductor manufacturing 12.

• Safety: Includes fail-safe cutoffs for over/under-temperature conditions 2.
